Low Voltage Touch Thermostat

Main features:

  • LCD display with touch control on the screen.
  • Heating and/or Cooling control.
  • 3-step (Low, Mid, High) fan-speed control.
  • To pre-set temperature with temperature compensation.
  • RS-485 communication for remote configuration, control and monitoring.
  • Available products:
    Series cooling & fan cooling & fan & heating
    Ultimate II G2-TD70A G2-TD72A
    Titanium GC2-TD70A GC2-TD72A
    Minimalist EB2-TD70A EB2-TD72A
    Radiance K2-TD70A K2-TD72A
    Glare V2-TD70A V2-TD72A
    Lavina 95 JC2-TD70A JC2-TD72A

            If isolated RS485 is needed, please replace A with MT.

    • G2-TD70A (non-isolated RS485, RJ45 jack)
    • G2-TD70MT (isolated RS485, screw terminal).

Technical Data:

LCD display

  • Screen size: 2.3 inch
  • Resolution: 320 * 240 pixel
  • Color depth: 16 bit (65,536 color)
  • Capacitive type touch screen
  • Built-in back-light
  • Standard background color: Navy blue

Temperature control

  • Temperature units: Celsius or Fahrenheit
  • Room temperature display range: 0oC to 37oC (32oF to 99oF)
  • Pre-set temperature range: 16oC to 35oC in 1oC step (61oF to 95oF in 1oF step)
  • Temperature compensation: -8oC to +8oC (-14oF to +14oF)
  • Type of built-in thermistor: NTC
  • Control precision: +/- 1oC
  • Temperature control hysteresis: 1oC
    Air-con Mode Cooling / Heating valve Fan speed at auto mode

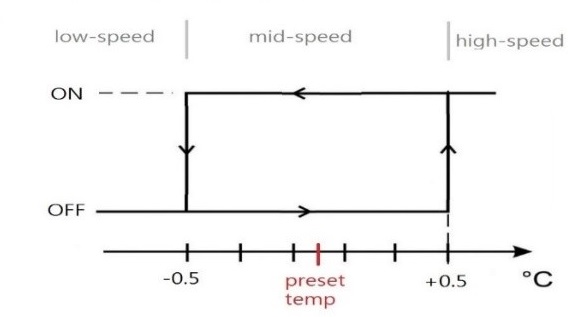

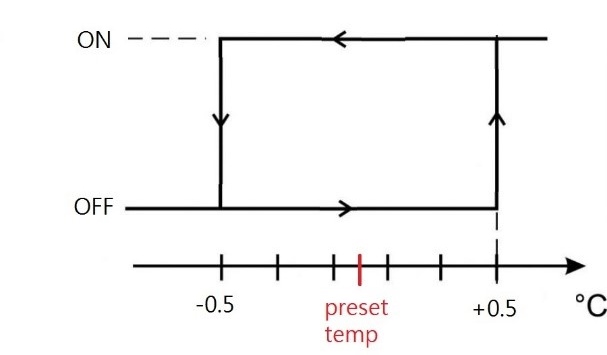

    Cooling Mode cooling_mode_hysteresis_jpg cooling_mode_auto_fan.jpg

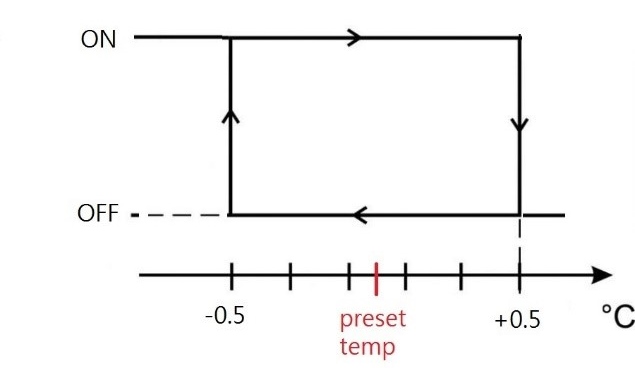

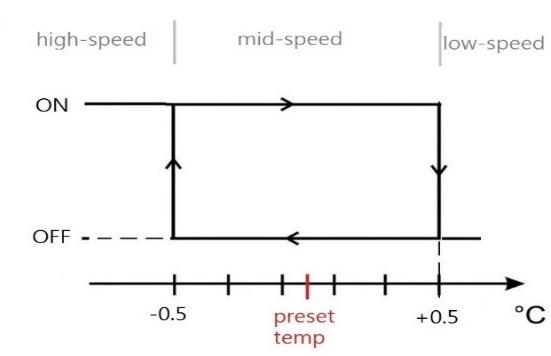

    Heating Mode heating_mode_hysteresis_jpg heating_mode_auto_fan.jpg



Electrical:

  • Input voltage: 12VDC -  24VDC
  • Power dissipation: < 500mW
  • Two types of terminals:
    1. RJ45 jack (T568B-type termination)
    2. Screw-type removable connector

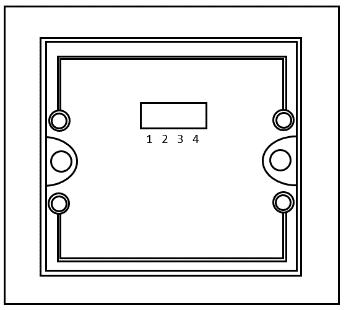

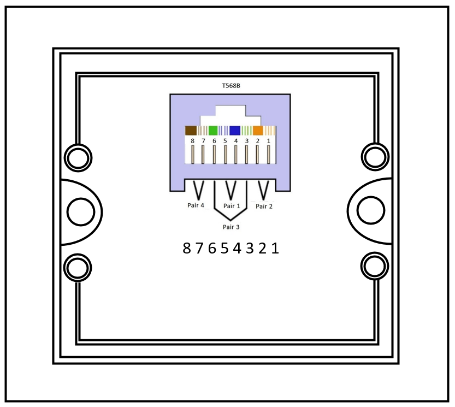

      RJ45 Jack Low Voltage Thermostat                Screw-type Low Voltage Thermostat
  • Cable type: CAT 5 / 6 cable with length less than 10m.
  • RJ45 jack pin assignments:
    Pin # Assignment
    1 0V DC (GND for RS485)
    2 RS-485 D-
    3 RS-485 D+
    4 Cooling valve signal
    5 Low fan speed signal
    6 Mid fan speed signal
    7 High fan speed signal
    8 +12V DC / +24VDC (Power Supply)

         *note: Do not provide "Heating value" signal pin on RJ45 jack.

  • Screw-type terminal pin assignments:
    Pin # Assignment
    1 RS-485 D+
    2 RS-485 D-
    3 +12V DC / +24VDC (Power Supply)
    4 0V DC (GND for RS485)

Mechanical:

  • Operating Temperature: -5 ℃ to 40 ℃
  • Dimensions: 86 x 86 mm
  • Depth: ~34mm (high-voltage thermostat), ~24mm (low-voltage thermostat)
  • Fix Center: 60.3 mm
  • Materials for the front plastic: high grade polycarbonate
  • Materials for housing: high grade polycarbonate

Configurable Controls:

To configure various settings and to control thermostat by means of RS-485 communication.

  • To enable / disable touch-screen keys which include:
    1. Power key – To ON / OFF thermostat
    2. Fan-speed key – To adjust fan speed
    3. Air-Con mode key – To adjust air-con operating mode
    4. Temperature key – To enter pre-set temperature adjustment page

    *note: Once a key is disabled, user cannot change the related function.

  • To change the pre-set temperature.
  • To change the temperature compensation.
  • To show / hide the following controls:
    1. Power control
    2. Air-con mode control (Cooling, Fan, Heating, Dry)
    3. Fan-speed control (Low, Mid, High, Auto, Off)
    4. Fan-speed numeric indicator

    For example, the default of Fan-speed OFF is hide and invisible, user can only select Low, Mid, High, and Auto fan-speed..

RS-485 Communication Channel:

  • 2-wire RS-485 communication port.
  • Supported function code 0x03, 0x06 and 0x10 of Modbus RTU protocol.
  • Port settings can be configured by means of RS-485 communication.
  • Baud rate:   2400, 4800, 9600, 19200, 38400, and 115200 bps.
  • Parity bit:    none, odd, and even parity.
  • Stop bit:     1 stop bit and 2 stop bits.
  • Default settings: 9600bps, none parity and 2 stop bits.
  • Default Modbus station no. is # 3.
